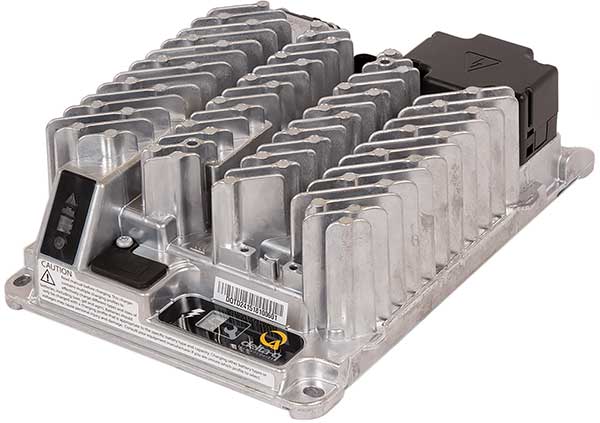

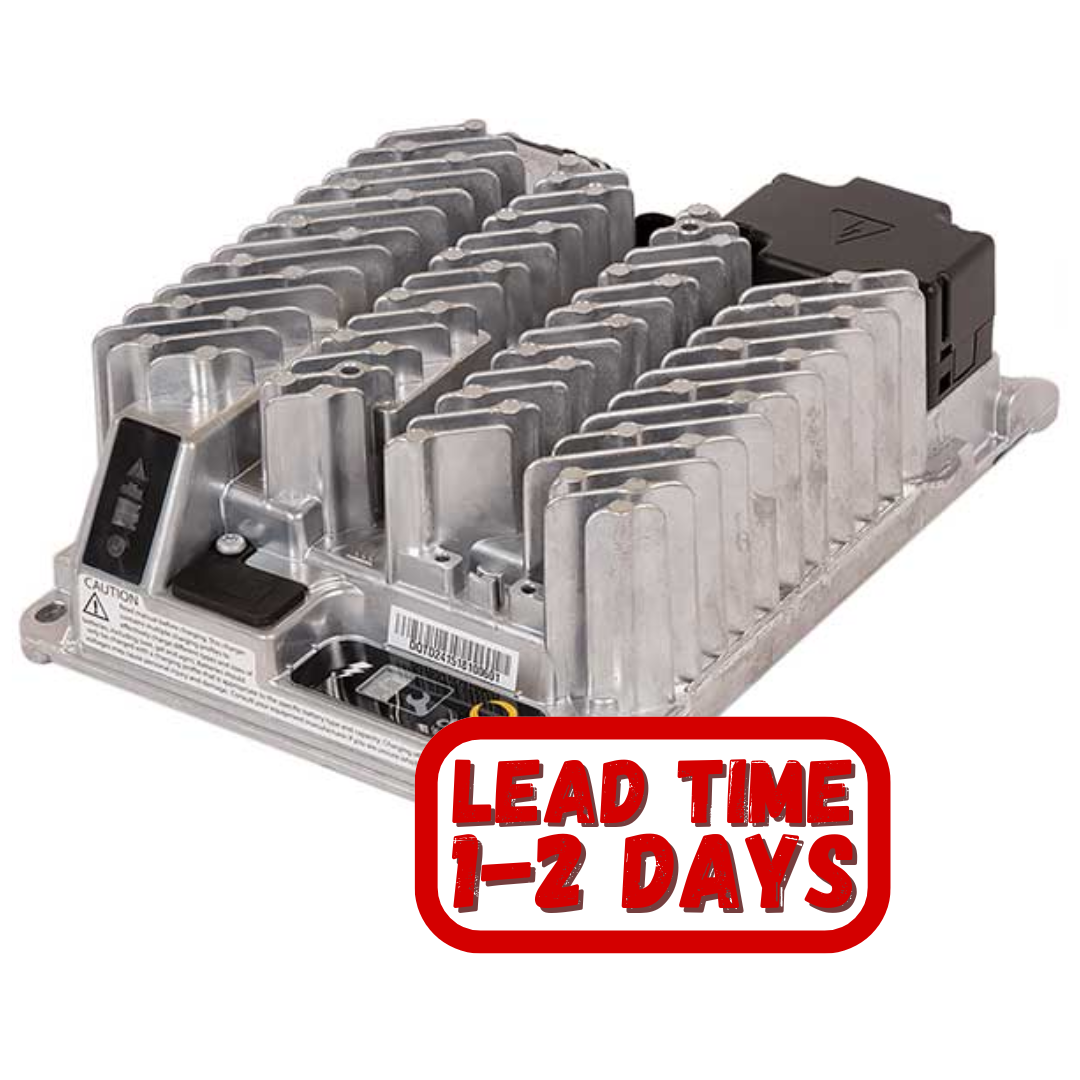

Delta-Q IC650 48v 13amp Golf Cart Battery Charger

DC Output : 48 VDC
Maximum DC output voltage : 72 V
Maximum DC output current : 13.5 A
Maximum DC output power : 650 W
Deep discharge recovery (minimum voltage) : 2.4 V
Maximum C3 interlock signal current :1.5 A (15 A with external interlock device, 24V model only)
Battery type : Lead acid (Wet / AGM / GEL), lithium
Reverse polarity : Electronic protection with auto-reset
Short circuit : Electronic current limit

AC Input
 AC input voltage range : 85-270 VAC
 Nominal AC input voltage :100-240 VAC
 Nominal AC input frequency : 50 / 60 Hz
 Maximum AC input current : 7.5 A
 Nominal AC input current :  6.0 A @ 120 VAC
 2.9 A @ 240 VAC
 Power factor :>0.98 @ 230 VAC

Mechanical
 Dimensions : 25.2 x 18.6 x 8 cm (9.9 x 7.3 x 3.1”)
 Weight : < 3 kg (< 6.5 lbs)
 AC input connector : IEC320 / C14 (requires country-specific cord)
 DC output connector : M6 threaded fasteners for ring terminals
 Service port : Sealed (IP66) USB 2.0 Host Port (Type A) with dust cover
 Mounting holes : Allows for safe installation on shelf, wall or bulkhead
 Cooling : Normal operation in any orientation with passive cooling
